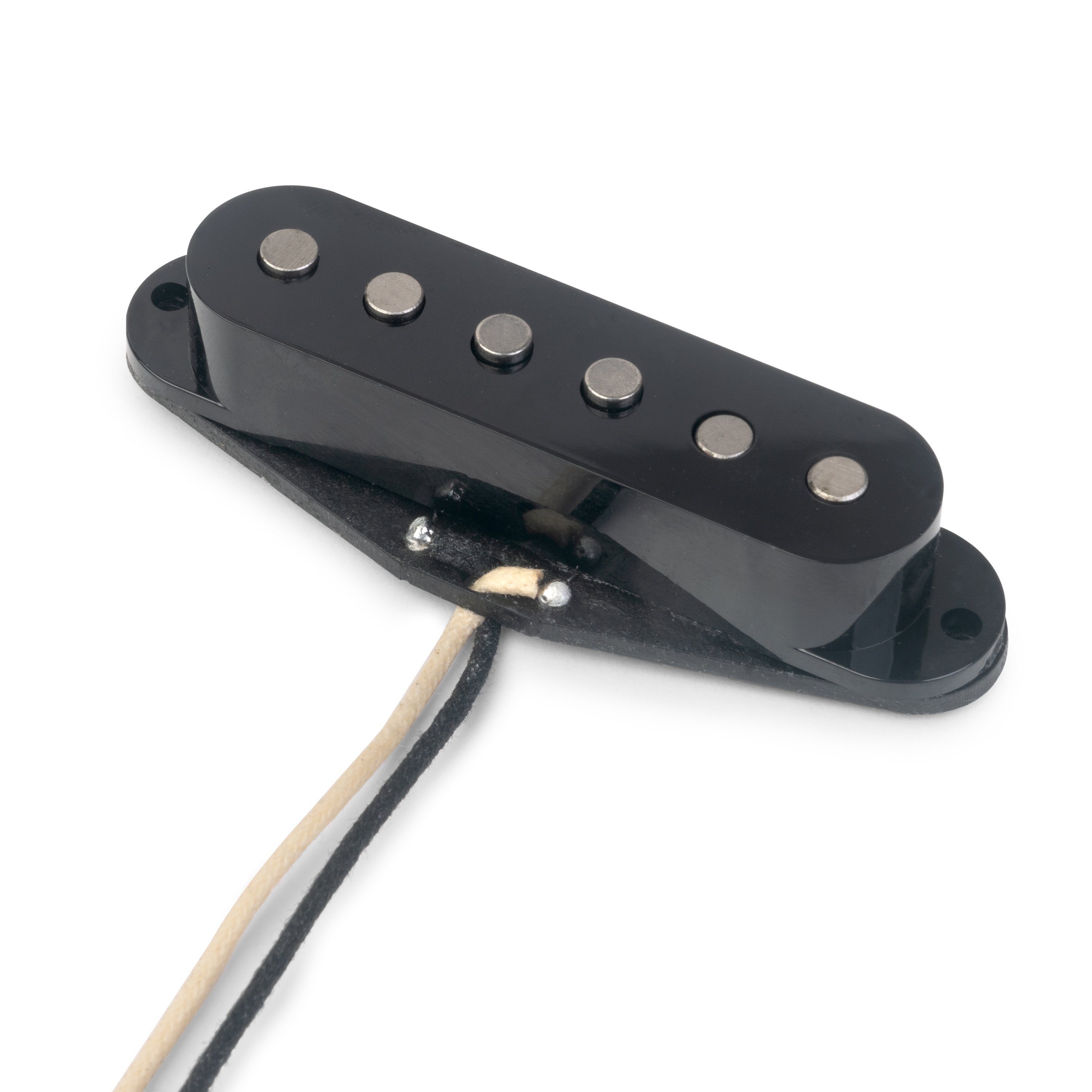

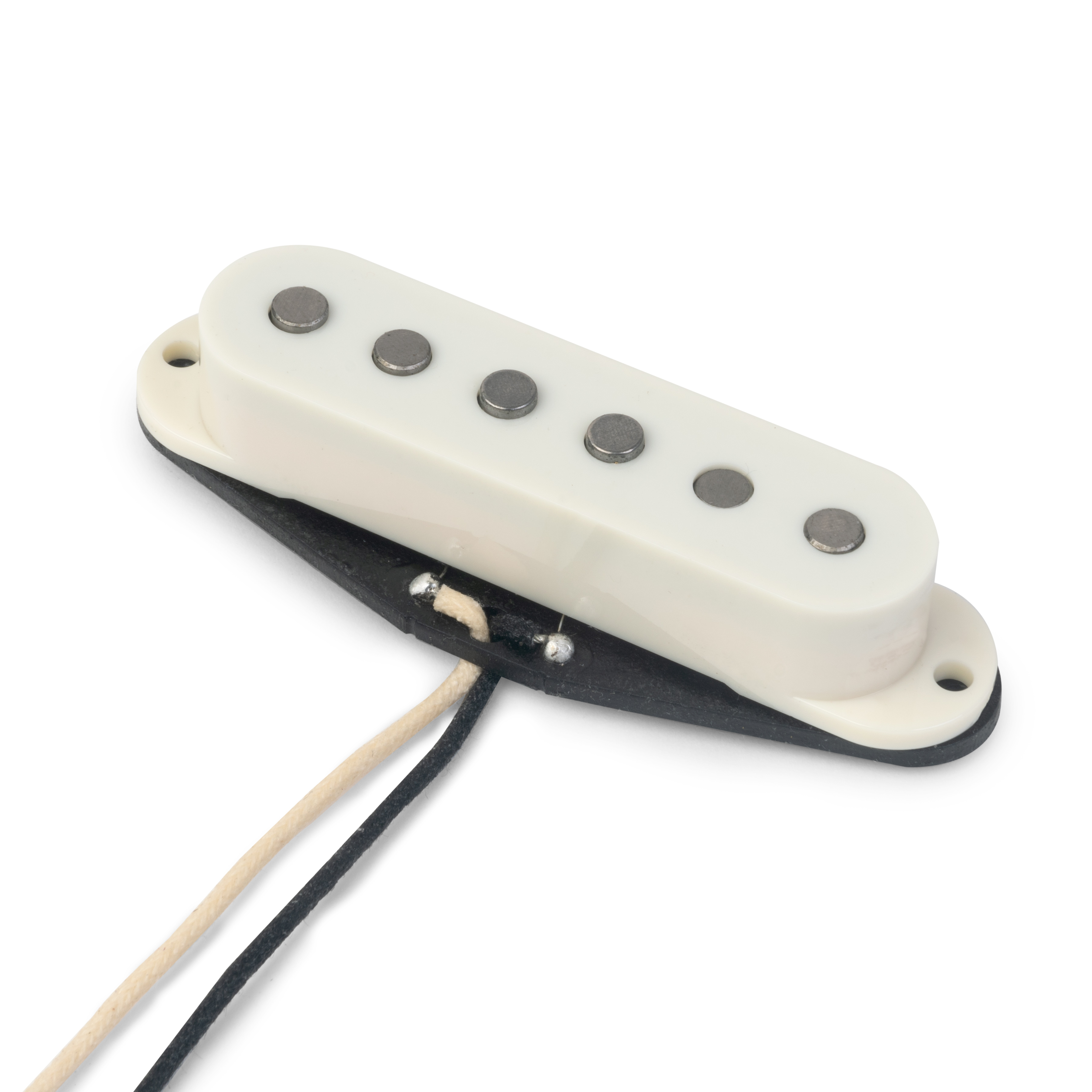

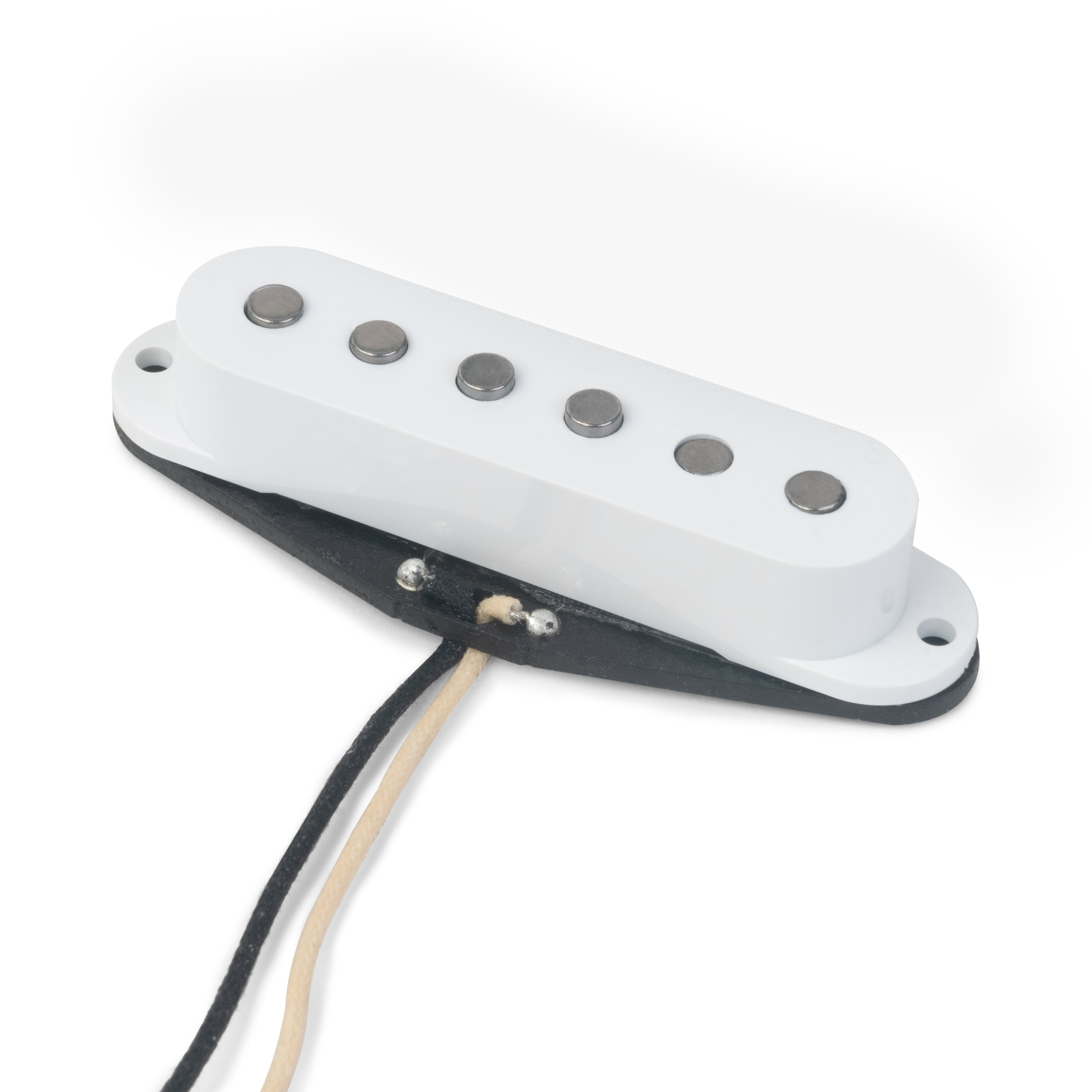

StewMac Single-coil pickups
Wake up your guitar! Inspired by legendary pickups of the '50s, our single-coil pickups are built for the modern player to bring out the best in your tone.
The new standard for replacement pickups
Many stock single-coil sound weak, microphonic, and aren't even built right! Ours are built with real Alnico 5 magnets with staggered polepieces just like the best vintage Strats and custom shop creations.
Alnico 5 magnets produce a clear tone with more pronounced highs and a tighter low end. It's the right combination for defined clean tones and overdriven sounds that don't get lost in the mix.

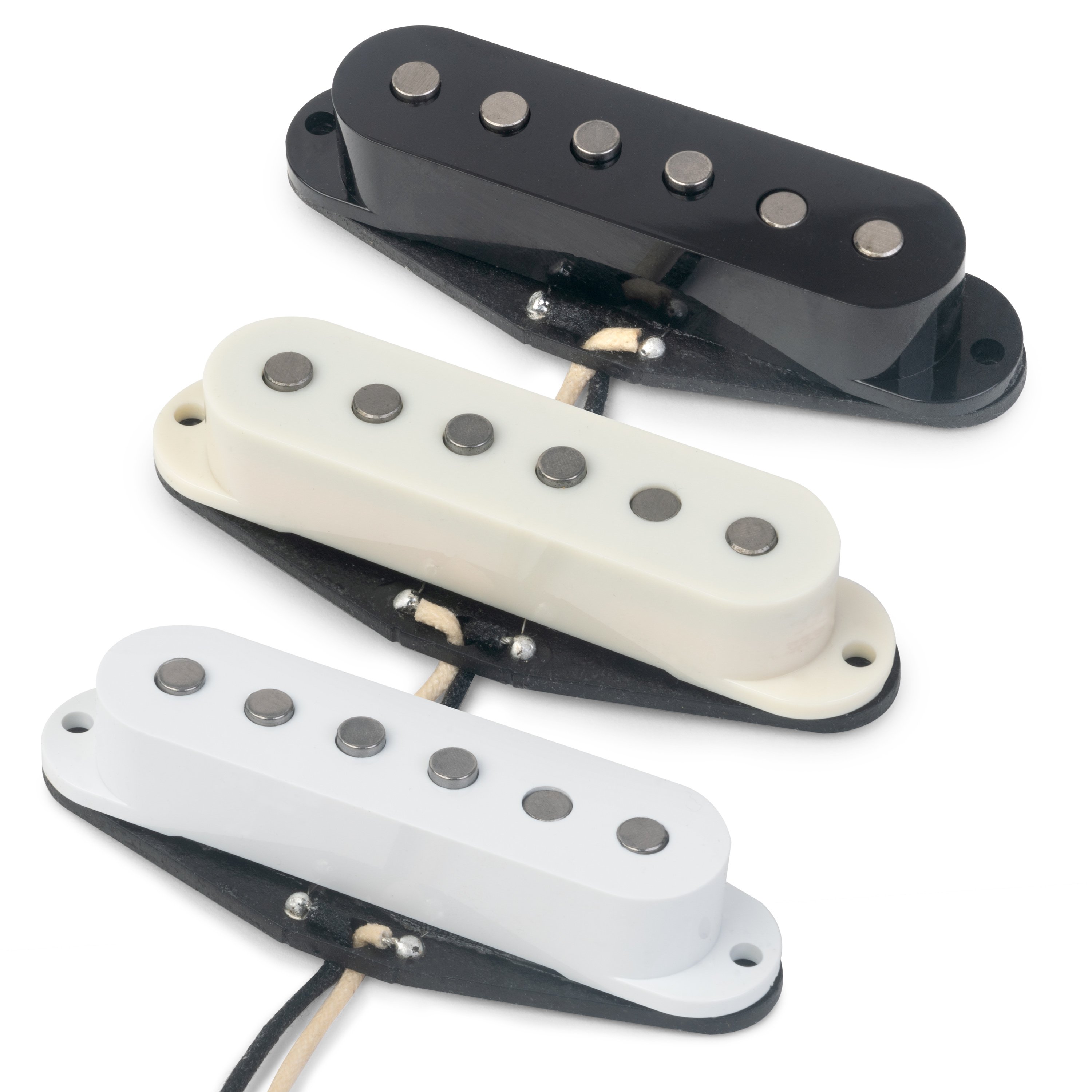

They're custom-wound for each position for a perfectly balanced tone. The middle-position pickups are reverse wound, reverse polarity, for hum cancellation at the #2 and #4 switch positions.
Looking for extra punch? Our Overwound Single-coil Pickups are specially wound to the 7.6K ohm range for the bridge or neck position.
Low noise for modern players

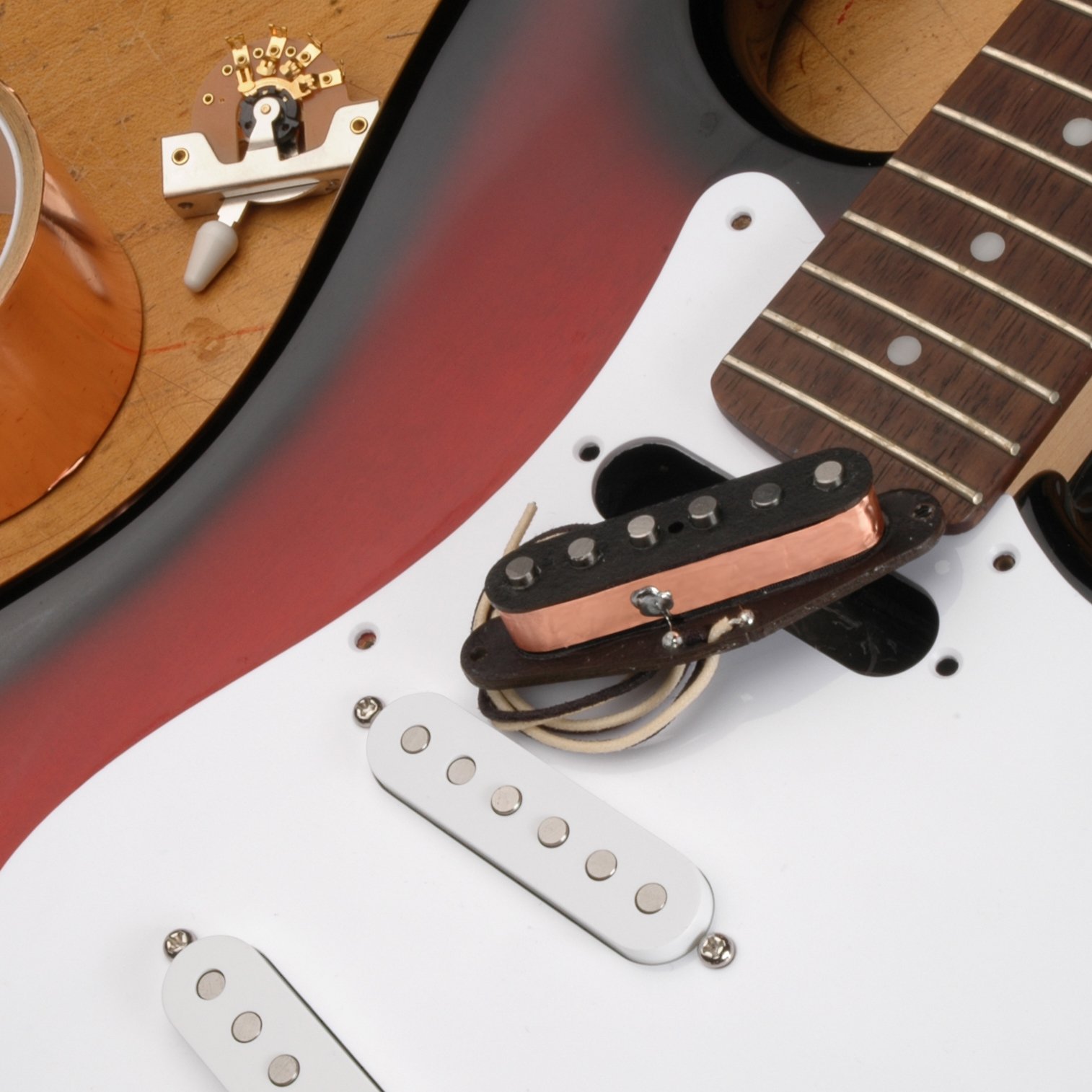

Each pickup has a copper shield surrounding the coil, a modern feature for 60-cycle hum suppression not found on vintage pickups.
Specifications
- Medium output single-coil pickup
- Polepiece spread: 2.063" (54.4mm)
- Poly-coated Formvar 42 AWG coil wire
- Potted and shielded to suppress noise
- Alnico 5 magnets
- Push-back cloth-insulated lead wires
Neck Position
- Output: 6.0K range
- Polarity: South
- Winding: Standard
Middle Position
- Output: 6.0K range
- Polarity: North
- Winding: Reverse (RWRP)
Bridge Position
- Output: 6.4K range
- Polarity: South
- Winding: Standard
Overwound Neck/Bridge Postion
- Output: 7.6K range
- Polarity: South
- Winding: Standard

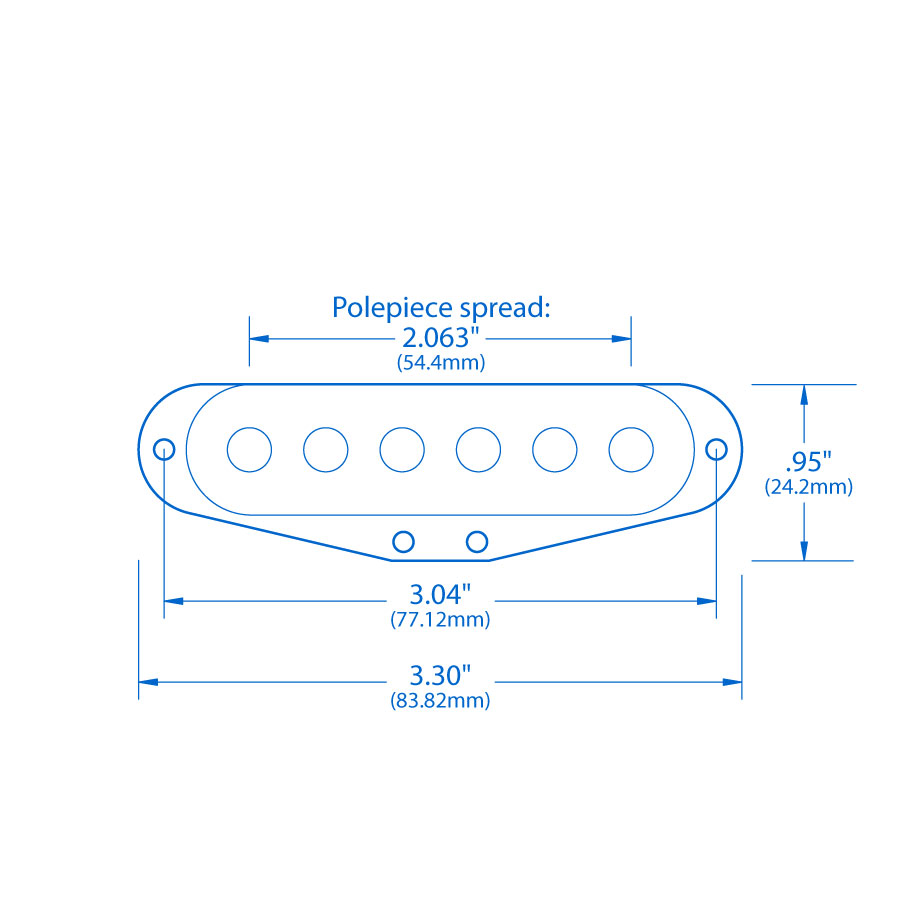

Dimensions
- Length: 3.30" (83.82mm) including mounting tabs
- Mounting screw spacing: 3.04" (77.12mm)
- Width: 0.95" (24.2mm) including bottom flatwork
Mounting screws, compression tubing, and wiring diagrams are included.
