Gotoh Vintage Deluxe 3-On-Plate Tuners

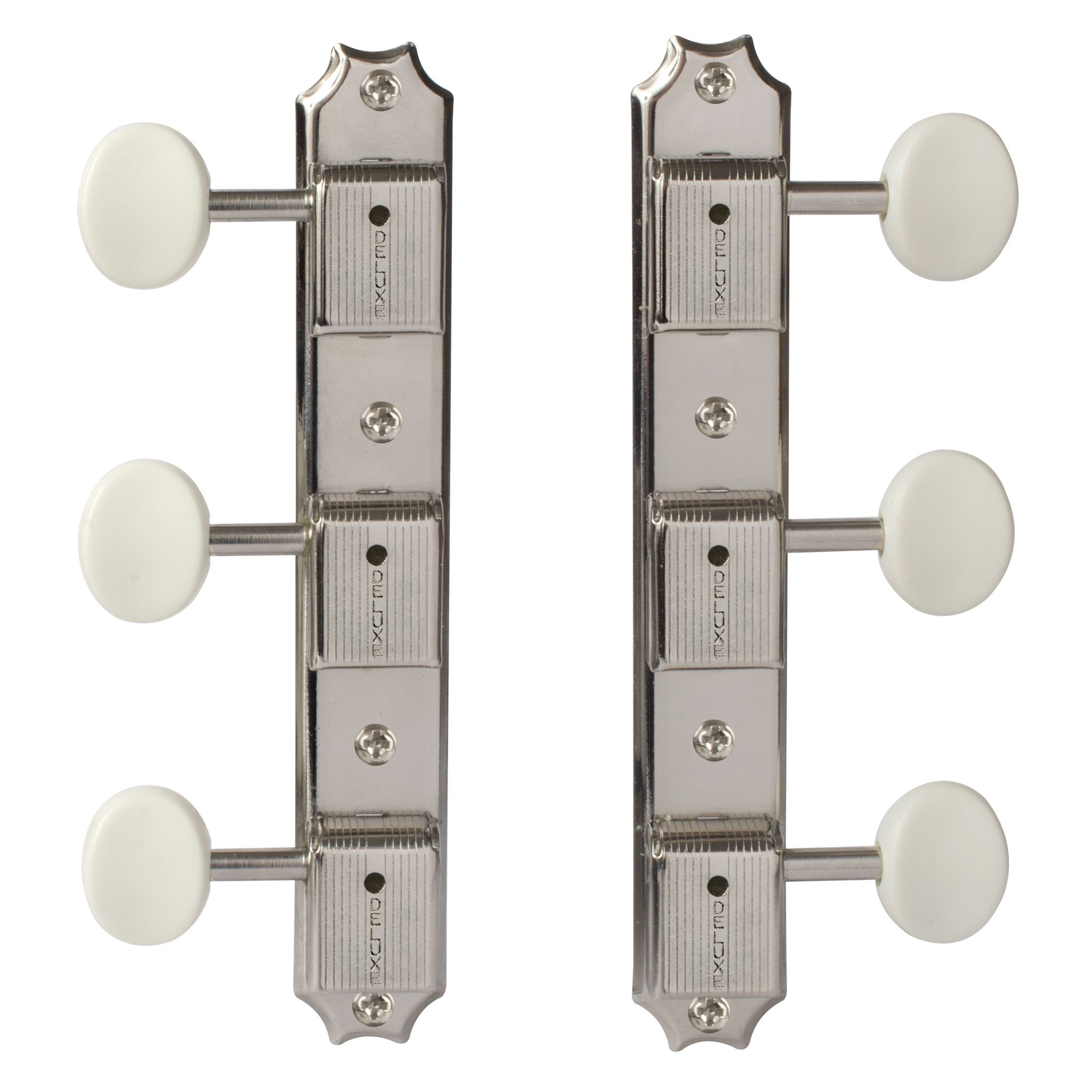

For solid pegheads. Direct-replacement steel-string tuners with vintage-style stamped plates and white plastic knobs.

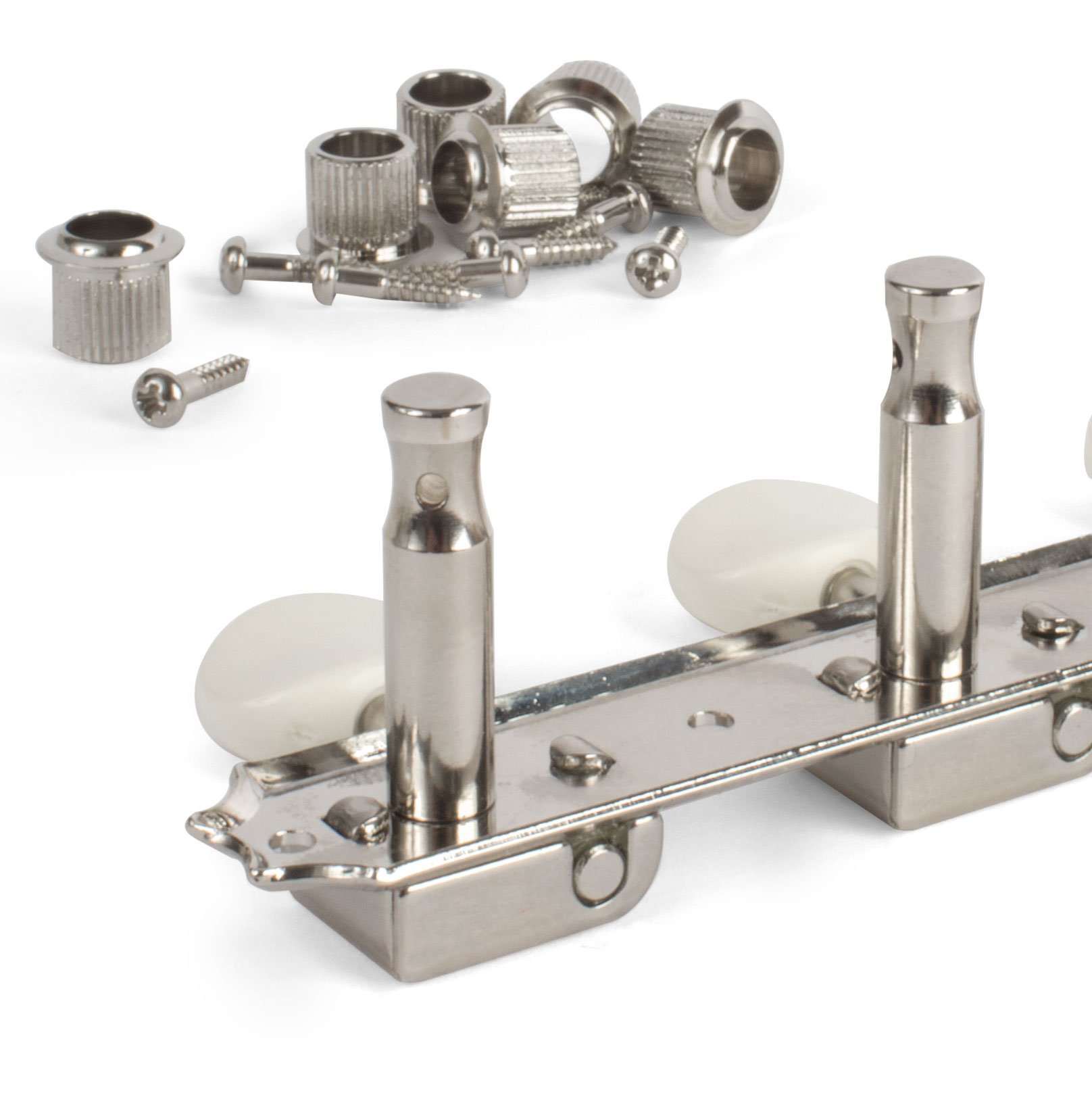

Nickel plated, with nylon internal bushings for smooth operation. Complete set of 3-left, 3-right include press-fit peghead bushings and mounting screws.15:1 ratio

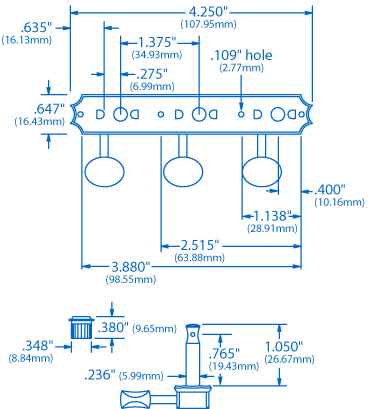

1-3/8" string post spacing
11/32"-diameter pegholes required
Installation Tips
Bushings: We recommend the #2062 Bushing Reamer (.340" diameter) to cut a clean, accurate counterbore for a professional job. Fit the press-fit tuner bushings correctly so your tuners will work smoothly.
Mounting screws: Pilot holes required. Installing delicate screws into hard wood requires great care and accuracy. We highly recommend the #1713 Depth-stop Drill Bit (No.44 bit) for the pilot hole before installing these screws. Lubricate the screw threads with cutting lubricant (also wax or a bar of soap) to reduce friction and help them thread properly.
- Item #
- Weight
- 4095
- 0.3200 lbs. (0.15 kg)
