How the stars set up their guitars

An excerpt from Dan Erlewine's "How To Make Your Electric Guitar Play Great", including celebrity setups from Jeff Beck to Jim Weider.

A-FAMOUSSETUPS

Here are over three dozen precise setup specs collected by Dan Erlewine as he interviewed famous players and roadies. All of these came from Dan's hands-on measurements of the actual guitars. More information can be found in the last chapter of Dan's book, including a detailed "10-step Fender Setup."




Players' setups:
Jeff Beck's Strat




John Borchard's '59 Gretch Anniversary




John Borchard's '67 Gibson ES-355




Junior Brown, Tone Player




Robert Cray's Strats

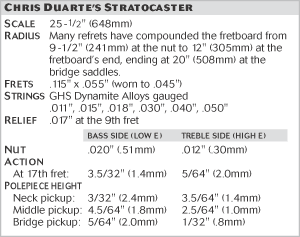

Chris Duarte's Strat

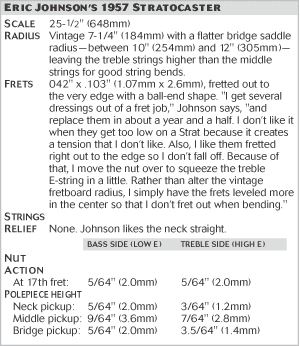

Eric Johnson's '57 Strat

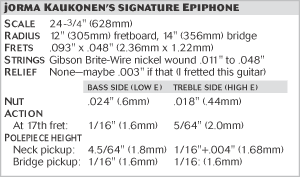

Jorma Kaukonen's Signature Epiphone

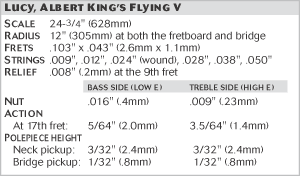

Albert King's Lucy Flying V

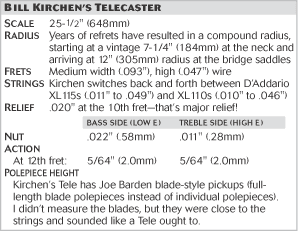

Bill Kirchen's Tele

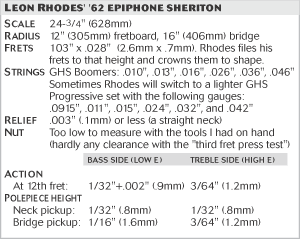

Leon Rhodes' '62 Epiphone Sheriton

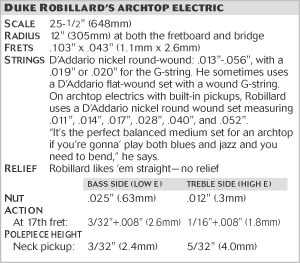

Duke Robillard's Archtop Electric

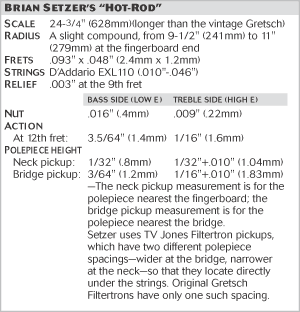

Brian Setzer's "Hot-Rod"

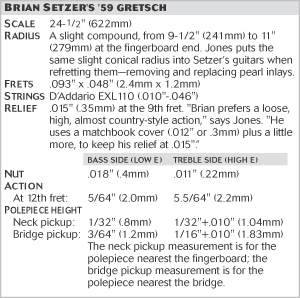

Brian Setzer's '59 Gretch

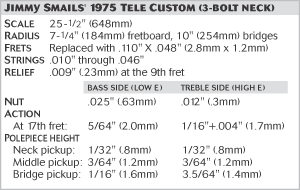

Jimmy Smails' '75 Tele Custom

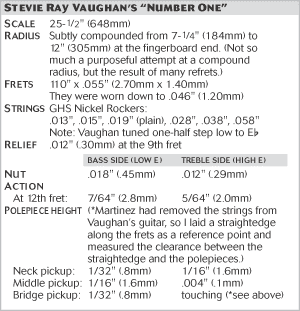

Stevie Ray Vaughan's "Number One"

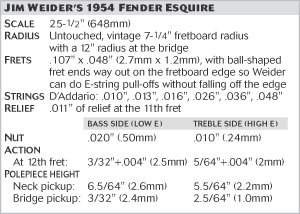

Jim Weider's Fender Esquire

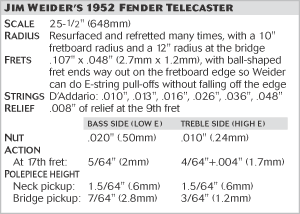

Jim Weider's Fender Tele

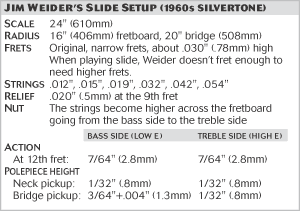

Jim Weider's Slide Setup ('60s Silvertone)






More setups, by maker:

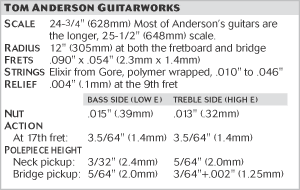

Tom Anderson Guitarworks

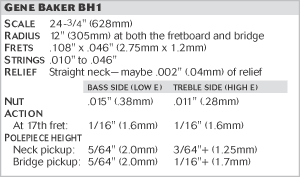

Gene Baker BH1

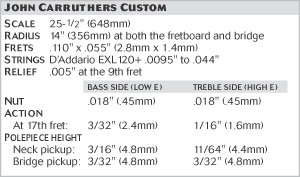

John Carruthers Custom

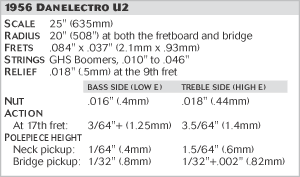

Danelectro U2 ('56)

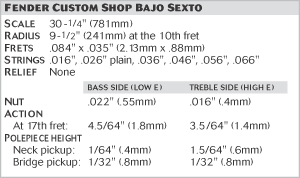

Fender Bajo-Sexto




Gibson ES-350 T (short scale jazz archtop)

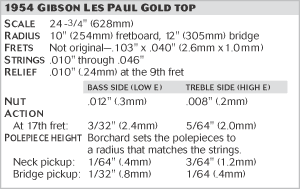

Gibson Les Paul Gold Top ('54)

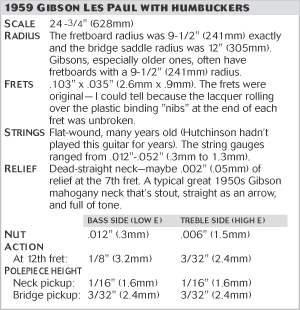

Gibson Les Paul with Humbuckers ('59)

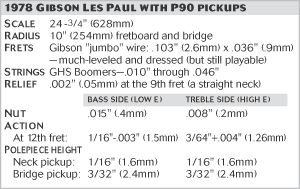

Gibson Les Paul with P90 Pickups ('78)

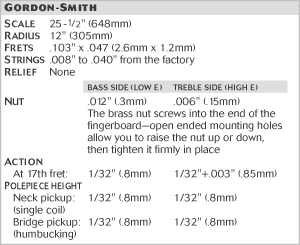

Gordon-Smith

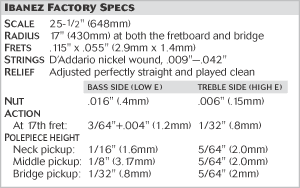

Ibanez Factory Specs

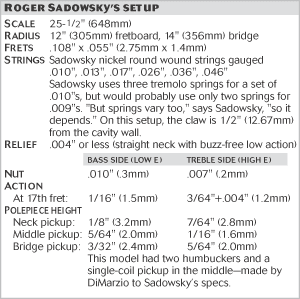

Roger Sadowsky's Setup

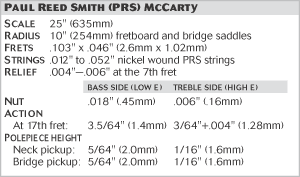

Paul Reed Smith (PRS) McCarty

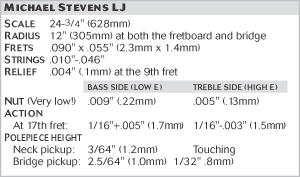

Michael Stevens LJ

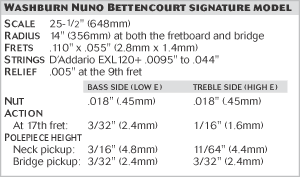

Washburn Nuno Bettencourt Signature Model

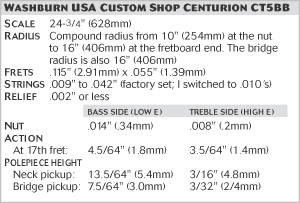

Washburn Custom Shop Centurion CT5BB
